General description

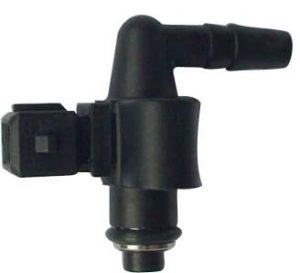

EFIJ- series Injectors are widely used in all kinds of medium and small displacement motorcycle engine Fuel Injection System (EFI system).
The control signal is from ECU, when the voltage of control wire is Low(0V),the injector will inject fuel, and when the control signal voltage is high(12V), the injector will be closed and not inject fuel.
Parameter
| project | parameter | ||
|---|---|---|---|
| 660cc/min | 240g/min | 30-248g/min | |
| Working voltage(V) | 12V-14V | ||
| Working Oil pressure(KPA) | Rated 300KPA(100KPA-450KPA) | ||
| Open time | 0.8ms | 0.9ms | 0.9ms |
| Close time | 0.7ms | 0.65ms | 0.65ms |
| flow rate | 660cc/min | 127/145/240 g/min | 30-248 g/min |
| resistance | 12Ω | 12Ω | 12Ω |
